G303R-130E00B3B-100-T299U

Category:

G303R Ultra-small Waterproof and Dustproof Micro Switch

G303R Ultra Small Waterproof and Dustproof Micro Switch

G303R Ultra-small Waterproof and Dustproof Micro Switch

Key words:

Telephone:

135 3634 9218

E-mail:

Ran@greetech.com

Consulting

Product Description

Quick Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: Unionwell

Rated Value: 0.1A, 125 / 250VAC; 3A / 12VDC; 0.1A / 48VDC, u 1E5.

Terminal Type: Bottom outlet

Contact Form: Single pole double throw

Operation Handle Type: Column type push button

Safety Certification: All products have obtained major global safety certifications.

Company Quality Assurance System: ISO9001, IATF16949, and ISO14001

Applications: Automotive, air conditioning, automotive electronics, communications, electric toothbrushes, household appliances, motor control, etc.

Features:

- Designed for waterproof and dustproof (IP67)

- Compact size

- Global safety certification

- Long lifespan, high reliability

- Various levers

- Various terminal connections

- Widely used in automotive electronics, home appliance control, industrial control, etc.

Characteristic Parameters:

Rated Value: 0.1A, 125 / 250VAC; 3A / 12VDC; 0.1A / 48VDC, u 1E5.

Operating Frequency (Electrical): 0.1A-120 / 3A-10~30 cycles/minute

Operating Frequency (Mechanical): 120 times/minute

Contact Resistance (Initial): Maximum 100mΩ (without wire type)

Insulation Resistance (500VDC): 100MΩ Min

Vibration Durability: 10~55Hz, displacement 0.75mm (p-p)

Dielectric Strength: 500VAC (50~60Hz)

Storage Temperature: -40℃ - + 85℃

Storage Humidity: Maximum 85%RH

Lifespan (Electrical): 6,000~500,000 / cycle (depending on part number)

Lifespan (Mechanical): At least 500,000 / cycle

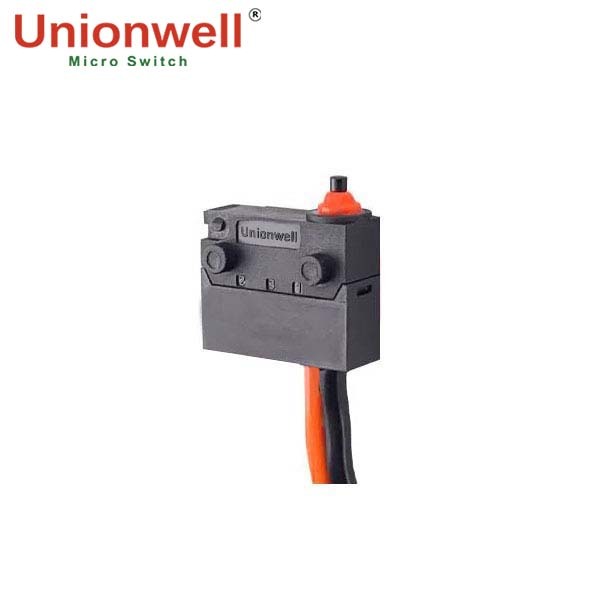

Product Image

Are you still worried that these problems cannot be solved?

Small Quantity: Starting quantity is too small, and the factory is unwilling to produce.

Testing: No functional monitoring, quality cannot be guaranteed.

Raw Materials: Quality of materials such as casing, handle, contacts, etc.

Stability: The lifespan of micro switches mechanically/electrically is unstable and does not meet requirements.

Shirking: Shifting responsibility for quality issues.

Youliwei provides the following major services to ensure your safety: Enjoy VIP service upon purchase. 1. Youliwei's four quality commitments have won specialized and innovative, high-tech enterprise certificates (various certificates can be provided for verification). Commitment One: Pre-sale and after-sale guarantee. Commitment Two: Technical guidance via phone customer service. Commitment Three: Direct supply from the factory with factory inspection provided. Commitment Four: Complete brand strength certificates. 2. Stock shipped on the same day, factory inventory is sufficient. 3. Return and exchange guarantee: 7 days for full refund, 15 days for exchange. 4. Problem-solving: 7x16 hours online. 5. Invoice service for regular and value-added tax.

Why Choose Us:

1. Strong R&D Team: Capable of providing one-stop ODM and OEM services from design and development to production manufacturing, as well as the development of automation equipment for the production process, always adhering to independent innovation.

2. Complete Laboratory: Has obtained UL witnessed laboratory certification and can complete all relevant experiments in the micro switch industry.

3. Own Automation Equipment R&D Team: Over 90% of automation equipment is designed and manufactured by our own engineers.

4. Comprehensive Technical Solutions: Professional personnel provide professional guidance.

5. Craftsmanship Quality, Worth Trusting: The company has obtained quality assurance system certifications such as IS014001, IS09001, and IATF16949; EcoVadis sustainability ranking Top 20%; major products have obtained safety standard certifications such as UL, CUL, ENEC, EU CE, CQC: 153 trademark registrations, 190 patent registrations, 67 invention patents, 2 global patents; all products comply with RoHS environmental protection and REACH environmental requirements, laying the foundation for global sales! Strictly implement ISO9001 and IATF16949 quality management standards, and each switch undergoes 100% full inspection using automated testing equipment before leaving the factory, providing the best quality for customers.

6. Fast Logistics Delivery: Stock shipped within 24 hours, custom orders delivered in 15-30 days.

Product Detail Display:

1. Temperature-resistant plastic: Made of fireproof special plastic, flame-retardant material, sturdy and durable, good toughness, heat and impact resistant, not easily deformed, good safety performance, integrated injection molding, strong compressive material.

2. High Sensitivity: Small size, strong elasticity, high sensitivity, long lifespan.

3. Waterproof and Dustproof: Ensures product safety and stability, suitable for use in various harsh environments.

4. Multiple Contact Types: Silver-plated, composite silver, copper-plated, etc., with good electrical performance.

Related Products

Customization Process

Demand Collection and Analysis:

Customers present customization requirements for micro switches to suppliers, including functional requirements, performance parameters, appearance dimensions, material selection, etc.

The supplier's sales team or engineering department communicates in detail with the customer to ensure accurate understanding of customer needs.

Solution Design:

The engineering team designs solutions based on customer needs, including structural design, circuit design, material selection, etc.

During the design process, multiple communications with the customer may be needed to confirm the feasibility and satisfaction of the solution.

Sample Production and Testing:

According to the design plan, the production department creates samples.

The quality inspection department conducts strict testing on the samples, including functional testing, performance testing, reliability testing, etc., to ensure that the samples meet design requirements.

Customer Confirmation:

The samples are sent to the customer for confirmation, and the customer evaluates the samples based on actual needs.

If the customer has modification suggestions for the samples, the engineering team will adjust the plan based on feedback and remake the samples.

Mass Production Preparation:

After the customer confirms that the samples are correct, the supplier begins preparations for mass production, including purchasing raw materials, preparing production equipment, and formulating production plans.

Mass Production and Quality Control:

The production department carries out mass production according to the production plan.

The quality inspection department conducts quality control during the production process to ensure that each product meets design requirements and quality standards.

Product Packaging and Shipping:

Qualified products will be packaged, usually using boxes, bags, etc.

The logistics department arranges shipping based on order information, delivering products to the customer's designated location.

After-Sales Service:

After the customer receives the product, the supplier's sales team and technical team will provide necessary after-sales services, including product usage guidance and troubleshooting.
