G610-250S24CU

Category:

G610 a small waterproof micro switch

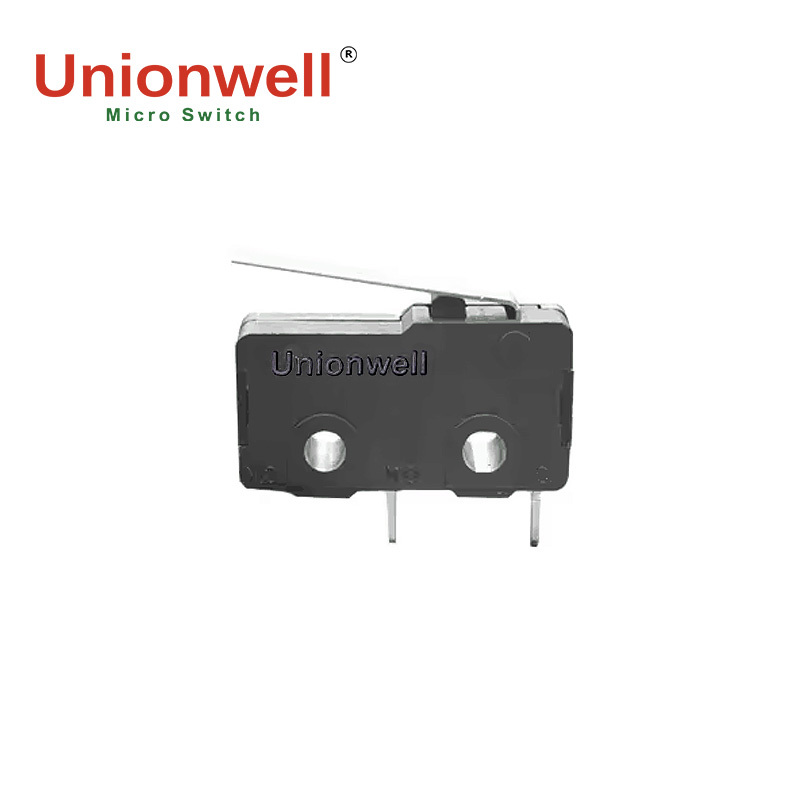

G610 - Small Waterproof Micro Switch

Key words:

Telephone:

135 3634 9218

E-mail:

Ran@greetech.com

Consulting

Product Description

Quick details

Place of origin: Guangdong, China (Mainland)

Brand name: UNIONWELL

Model: G610-250S24CU

Terminal type: Solder terminal

Contact form: Single pole single throw normally open

Certification: All products have obtained major global safety certifications

Company guarantee system: ISO9001, IATF16949, and ISO14001

Application: Automotive, telephone, air conditioning, calculator, humidifier, alarm, mixer, fax machine, pencil sharpener, food processing machine, toy car, lighting equipment, electric frying pan.

Features

- Waterproof and dustproof IP67 design

- Compact size, compact structure

- Long lifespan, high reliability

- Complete variety of terminal types

- Equipped with various forms of operating handles

Characteristic parameters

Rated value	p1	0.1A 125/250VAC 48VDC / Contact optional gold-plated
	05	UL: 5A 125/250VAC ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ25T120
	051/052	ENEC/CQC: 5A 125/250VAC 25T125 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC
	10/101	ENEC/CQC: 10(2)A 125/250VAC 25T125 1E4 UL: 10.1A 125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Suitable for operating force above 250gf
	12	ENEC/CQC: 12(6)A 125/250VAC 40T125 1E4 UL: 12A 125/250VAC Note: Suitable for operating force above 350gf
Operating frequency	Electrical	10~30 cycles/minute
Operating frequency	Mechanical	120cycles/minute
Initial contact resistance		100mΩ Max / It depends on the wire length for the type with wire
Insulation resistance (at 500VDC)		100M Ω Min
Dielectric strength		AC 1,000V RMS (50~60Hz)
Storage temperature		-25°C~+120°C
Storage humidity		85%RH Max
Lifespan	Electrical	10,000-50,000 cycles / Depends on model
Lifespan	Mechanical	1000000cycles
