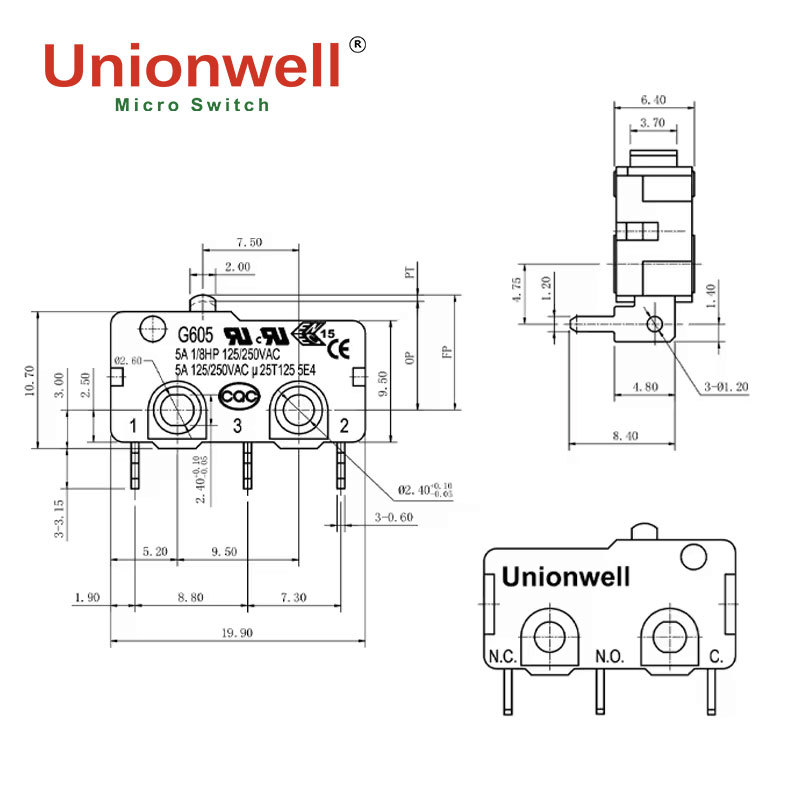

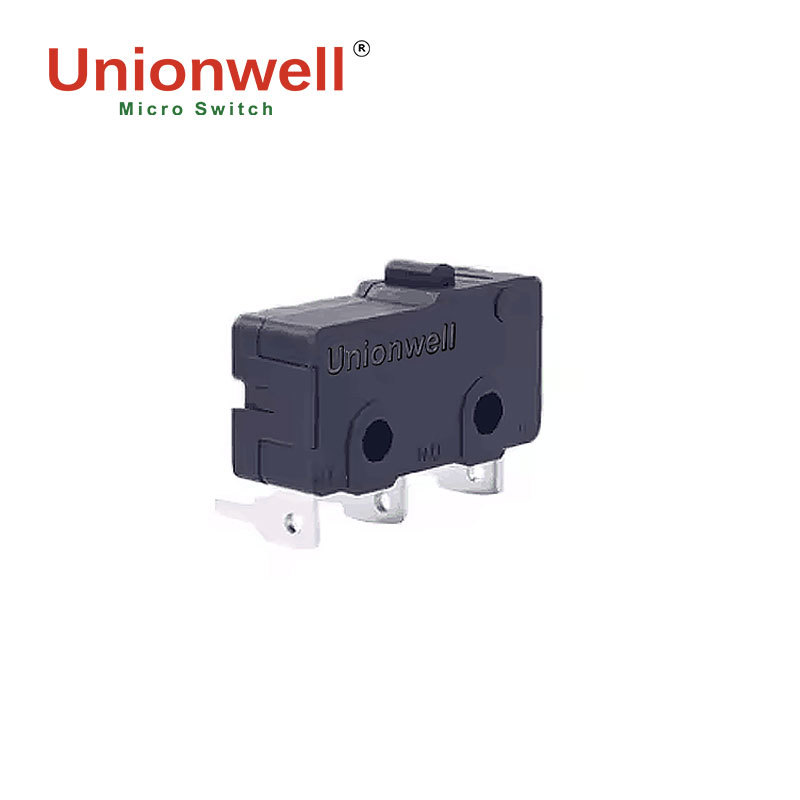

G605-250L00AU

Category:

G6 - Miniature Micro Switch

G6 a small micro switch

Key words:

Telephone:

E-mail:

Quick details

Place of origin: Guangdong, China (Mainland)

Brand name: Unionwell

Model: G605-250L00AU

Contact form: Single pole double throw

Handle type: Without handle, column type push button

Safety certification: All products have obtained major global safety certifications.

Company guarantee system: ISO9001, IATF16949, and ISO14001

Application: Telephone, air conditioning, computer, fax machine, juicer, etc.

Features

- Compact size

- Long lifespan and high reliability

- Various handles

- Various terminals

- Global safety certification

- Widely used in home appliances and industrial control, etc.

- Custom design

Characteristic parameters

Rated value	P1	ENEC/CQC: 0.1A, 125/250V 48VDC 5EA UL: 0.1A, 125/250V 48VDC Contact optional gold plating
	05	ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC 5A 30VDC
	051/052	ENEC: 5A, 125/250VAC 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A, 125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/ only applicable for operating force above 250gf
	12	ENEC: 12(6) A, 125/250VAC U 40T125 UL: 12A, 125/250VAC Note: Only applicable for operating force above 350gf
Operating frequency	Electrical	10-30 times/min
Operating frequency	Mechanical	120 times/min
Initial contact resistance		100mΩ Max
Insulation resistance		100mΩ Min
Dielectric strength		AC, 1,000RMS (50-60HZ)
Storage temperature		-25℃~+125℃
Storage humidity		85% RH Max
Lifespan	Electrical	10,000-50,000 /cycles (D depends on type)
Lifespan	Mechanical	1,000,000/cycles
