G605-150S96CS-T194U
Category:
G6 - Miniature Micro Switch
G6 - Miniature Micro Switch
G6 - Miniature Micro Switch
G6 a small micro switch
Key words:
- Product Description
-
Quick details
Place of origin: Guangdong, China (Mainland)
Brand name: Unionwell
Model: G605-150S96CS-T194U
Terminal type: Solder terminal
Contact form: SPST - NO single pole single throw normally open
Operating force: 150gf 1.49N
Certification: All products have obtained major global safety certifications, RoHS & Reach
Company quality assurance system: ISO9001, IATF16949, and ISO14001
Features
- Compact and small size
- Long lifespan with global safety certification, high reliability
- Terminal load capacity up to 10(2)A 1/4HP
- Complete terminal operating handle
- Widely used in automotive control, home appliance control
- Industrial control and other fieldsCharacteristic parameters
Rated value P1 ENEC/CQC: 01A125/250VAC 01A 48VDCH 25T125 5E4UL: 01A125/250VAC O1A48VDC
Contact optional chain goldDielectric strength
05 ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC 25T125 5E4UL: 5A125/250VAC 1/8HP 125/250VAC 5A 30VDC 051/052 ENEC/CQC: 5A 125/250VAC 25T125 5E4
UL: 5A 125/250VAC 1/8HP 125/250VAC10/101 ENEC/CQC: 10(2)A 125/250VAC H 2T125 1E4UL: 10.1A125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Only applicable for operating force above "250gf" 12 ENEC/CQC: 12(6)A 125/250VAC U 40T125 1E4UL: 12A 125/250VAC

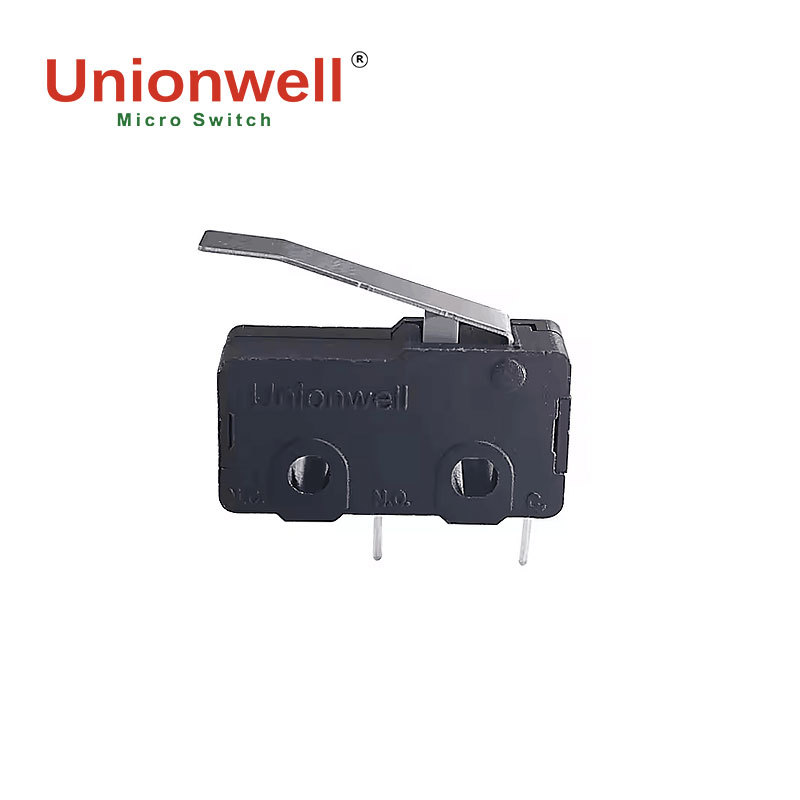

Note: Only applicable for operating force of "350gf"Initial contact resistance 100mΩ Max. Insulation resistance 100MΩ Min. (at 500 VDC) Withstand voltage Between terminals 1,000VAC 50-60Hz for 1 Min. Between terminal and housing 1,500VAC 50~60Hz for 1 Min. Operating environment temperature 25℃~+125°C Operating environment humidity 85%RH Max. Lifespan Electrical 10,000--50,000 times (depending on type) Mechanical 1,000,000 times Operating frequency Electrical 10~30 times/min Mechanical 120 times/min Product image

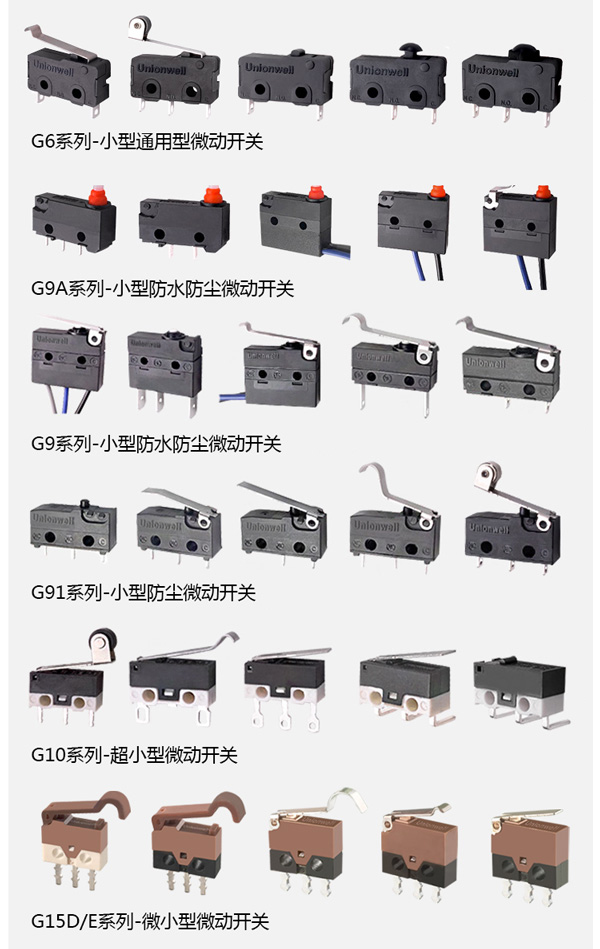

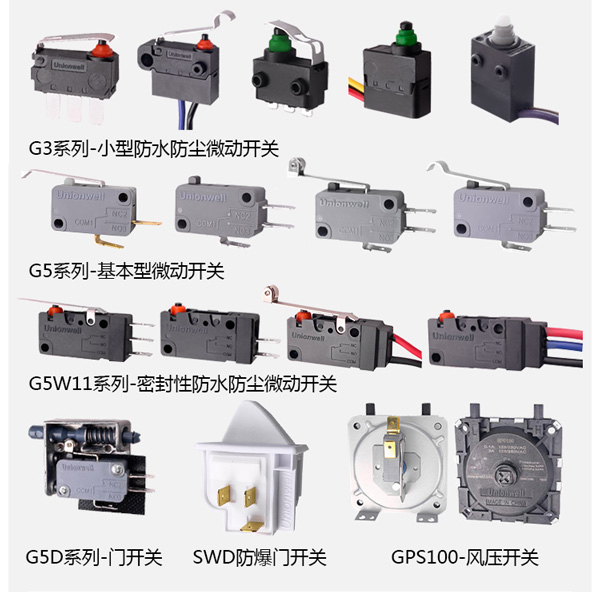

Related products
